Composite SPD-1 Surge Protector Surge Protector

Composite SPD-1 surge protector surge protector PE 760-25W1-10(R) Feature MOV and Spark Gap technology Non-follow current Combined disconnection device High discharge capacity Capable of protecting terminal equipment Visual and remote status indication Multifunctional terminals for connecting...

Send Inquiry

Add To Inquiry

Product Introduction

Composite SPD-1 surge protector surge protector

PE 760-25W1-10(R)

Feature

MOV and Spark Gap technology

Non-follow current

Combined disconnection device

High discharge capacity

Capable of protecting terminal equipment

Visual and remote status indication

Multifunctional terminals for connecting conductors and busbars

DIN rail installation

Description

DIN rail, Type 1+2 / Class I +II multi-purpose single-pole SPD with MOV

and Spark Gap technology for use in 400/690 Vac power supply system

at boundaries from LPZ 0 -2

Dimension drawing

Circuit Diagra

product-605-481

product-610-485

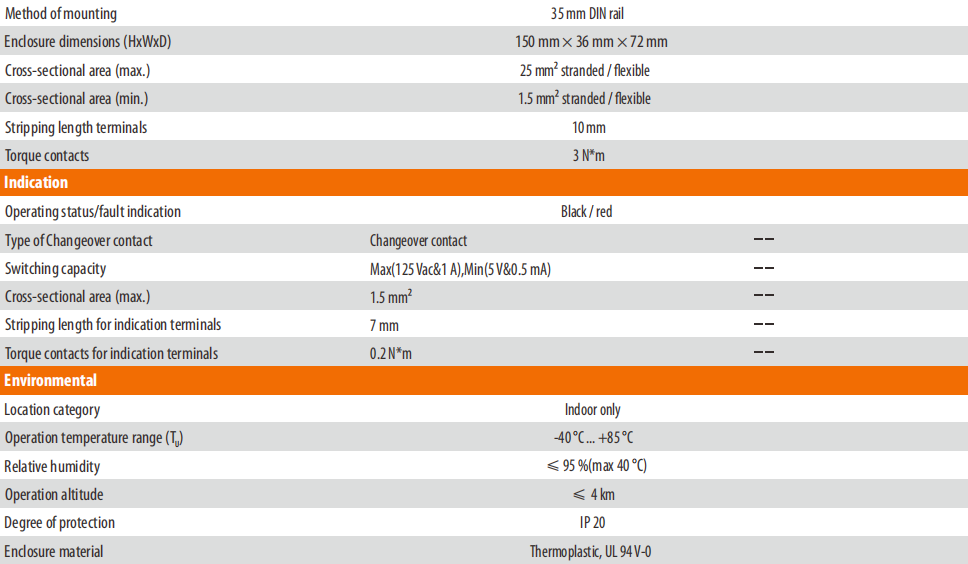

Specifications Parameter

product-972-665

product-968-564

Typical Solution

Power Supply

Wind Power

Solar Power

A&Q

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: Do you provide sample ? Is it free?

A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.

Q: What is your term of payment?

A: 30% down payment before producing and 70% balance payment before shipping.

Q: Which payment form you can accept?

A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
