120*120*25 AC Axial Fan
General Specifications of the 120*120*25 ac axial fan
- Material: Aluminum Housing, Plastic Impeller
- Bearings: Maintenance-Free Ball Bearings
- Motor Type: AC Shaded-pole Motor
- Connection: Terminals or Lead wire
- Dielectric Strength: 1800 VAC for 1 Sec.
- Insulation Resistance: 100 MΩ min.@500 V DC
- Operating Temperature: -30℃ to +75℃(Ball Bearing)
- -10℃ to +70℃(Sleeve Bearing)
- Type of Protection: Insulation Class B
- Safety: Impedance Protected
- Plastic Impeller
- Weight: 320g
- 330g
- Rohs Compliance
120*120*25 ac axial fan

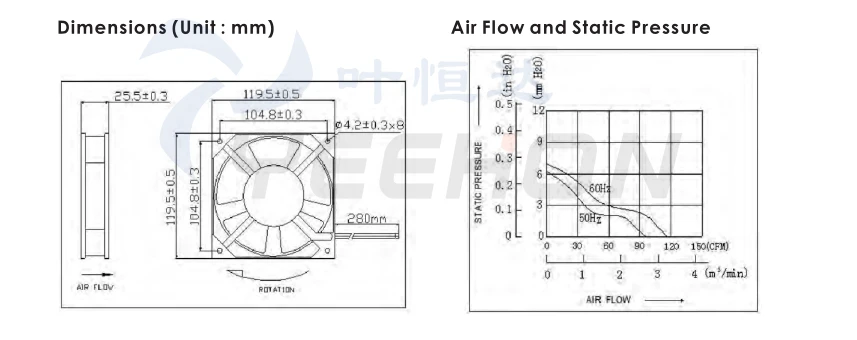

Dimensions of the 120*120*25 ac axial fan(unit:mm)

Application
Widely used in aerospace, medical industry, stage lighting, automotive industry, automation equipment, new energy resources and other fields.

A&Q
Q1: How about the quality of our products?
A1: Our company has passed CE and ROHS quality system certification . We can ensure the production of fan meet the quality, performance, and security of customer request!
Q2: How about the product size?
A2: Our company's product size can be customized according to customer's needs.
Q3: Are you factory?
A3: Yes, we are factory, we are manufacturer. We are not a middleman.fan.Also we provide the SPD as well.
Q4: How about the package?
A4: Our products package use box or carton. And we also can according the customer's required.
Q5: How to solve the equipment trouble during using?
A5: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
