Dc Axial Fan 24v

PRODUCT SPECIFICATION



What is a DC axial fan?

DC axial fans are also widely used in various medical equipment in the medical industry to provide temperature control in a compact environment. DC fans can be found in oxygen concentrators, ventilators, diagnostic imaging equipment, and other medical equipment.

A. General Specification of dc axial fan 24v

ITEM		Specification Condition

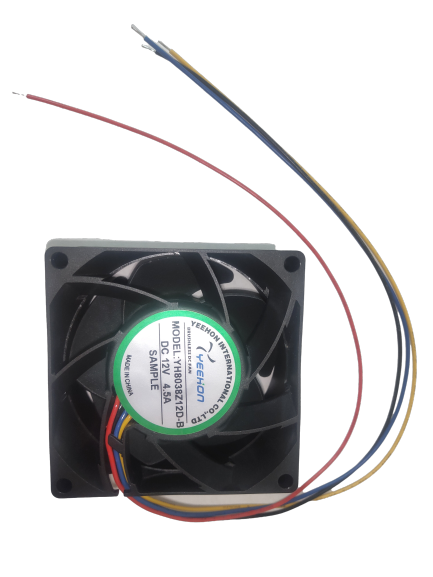

01	Part No.	YH8038Z12D-B
02	Dimension	80*80*38mm
03	Rated Voltage	12VDC
04	Start-up Voltage	≤7.0VDC
05	Operating Voltage	10.8 V～13.8 VDC		a.Rated Voltage (lable:0.50A)
06	Rated Speed	14900RPM	±10%	b. 25℃
07	Rated Current	3.68A	±10%	c. 65% RH
08	Rated Power	44.16W		d. Measured after 5 Mins
09	Max Airflow	130.7±10%	CFM	a. PQ Measurement Apparatus : (LW9266-SR) b.Standard : AMCA c. Rated Voltage d. Rated Current
		3.7±10%	M3/Min
10	Max Static Pressure	4.0±10%	Inch-H2O
		101.6±10%	MmH2O
11	Life Expectancy	50000hrs at 30℃		a.L10 at Conf. Level 90% b. Rated Voltage
12	Noise Level	69dB±10%		a.Rated Voltage b.Non-Echo Chamber c.Standard:CNS 8753/ISO3744 d.Test Condition:ISO 7779 e.Distance: 1.0M
13	No. of Pole	Four Poles
14	Waterproof	NO

B. Electrical Specification

ITEM		Specification. Condition
01	Locked Rotor Protection	□	Safety Condition
		■	Auto power off after locked at rated voltage for 1sec After auto power off ,circuit attempt restart in 2 to 6sec
02	Polarity Protection	■	Open circuit when Vcc&GND are exchanged
		□	Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
03	Insulation Resistance	10MΩ Between unshielded wire and frame at 500VDC/min
04	Dielectric Strength	1mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min
05	Special Function	■		Soft Start	□	Current Limiter

C.Main Materials, Parts Specification of dc axial fan 24v



01

Bearing

■（Dual Ball Bearing）

Sleeve Bearing

02

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

03

Impeller

■

PBT of UL94V-0.

□

Steel

04

Bobbin

□ PBT of UL94V-0.

05

Lead Wire

■

Red(+)

■

Black(-)

■

Blue（FG）

UL1007 24#

■

Yellow(PWM)

□

White(RD)

4 wire300±10mm

06

Connector

NO

07

Tube

NO

D.Environmental Specification

ITEM		Specification. Condition
01	Operating Temp. Range	Temperature	: -10℃ ~75℃
		Humidity	:25%~ 75% RH (Frost Eliminated)
02	Storage Temp. Range	Temperature	: -40 ℃ ~75℃
		Humidity	:25%~ 75% RH (Frost Eliminated)

E.Noise Measure Condition

Measurement Systems

1.ANECHOIC Room Noise Measurement System

2.Digtal Head Measurement System, 16-bit version

3.Specifications:ISO 3744,ISO 3745,ISO 7779, CNS6753,JIS 8346

4.Background Noise:＜dB(A)

F. Label Marking

	Model No.	YH8038Z12D-B
	Rated Voltage	12VDC
	Rated Current	4.5A
	Label Size	Φ22.0mm
	Label Color
	Safety Approvals	CE
	Appendix Code	无/No

G.外框尺寸（Outline Dimension）





Note:

1. We will not guarantee the products if your application exceeds the limitations outlined in this specification.

2. Please do not touch and push fan blade with fingers or others. Fan blade and ball bearings may be damaged. And it caused noise defect.

3. Please avoid operating SFENGDA's products in poisonous material(organic, cyanogens, formalin, phenol, etc.)or corrosive gas environment(H₂S, SO₂, NO₂,etc.)

4. We do not warrant performance safety against accidents caused by dust, water, droplets dew, bugs, etc.

5. Always ensure that fans are stored according to the storage temperatures specified. Do not store in a high humidity environment. If the fans are stored for more than 6 months, we recommend functional testing before using.

6. Please do not damage this product this product including coil and lead wires while installing or wiring. There may be smoking or fire.

7. Avoid the damage, check the correct voltage and proper polarity before connecting with power.

8. Improper mounting may cause harsh resonance, vibration, and noise. Please mount securely.

9. It is very important to notify that avoid to drop from 60cm height when in any movement or operation, it will impact the balance of blade. Especially ball bearing structure is avoided to drop down.

10. Safety is a top priority. Please furnish guard accessories to prevent injury to personnel
