3010 DC Axial Fan
Air Brushless 30m X30mmX10mm With FG RD
Send Inquiry
Add To Inquiry
Product Introduction
Detailed Product Description Of 3010 DC Axial Fan
| Size: | 30mm X 30mm X 10mm | Voltage: | 5V /12V |
|---|---|---|---|
| Bearing Type: | Ball Bearing | Speed: | 6000 - 12000rpm |
| Motor: | Impedence Protected | Weight: | 8g |
| Current: | 0.05 - 0.28A | Power: | 0.6-1.44 W |
| Thickness: | 10mm | Max Air Flow: | 2.01 - 4.15CFM |
| High Light: | dc ventilation fan,electronics cooling fans | ||
3010 30mm Samll DC Axial Fan Air Brushless Fan 48g With FG RD 30mm X 30mm X 10mm
Frame--------------- --Thermoplastic PBT+30% GF, UL94-V0
Impeller------------- - Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- --UL 1061, AWG 28, 240±10mm, Red(+), Black(-)
Protection---------- -Locked rotor protection
IP Grade ---------- ---Optional
Dimension Drawing Of 3010 DC Axial Fan
Air Pressure Of 3010 DC Axial Fan

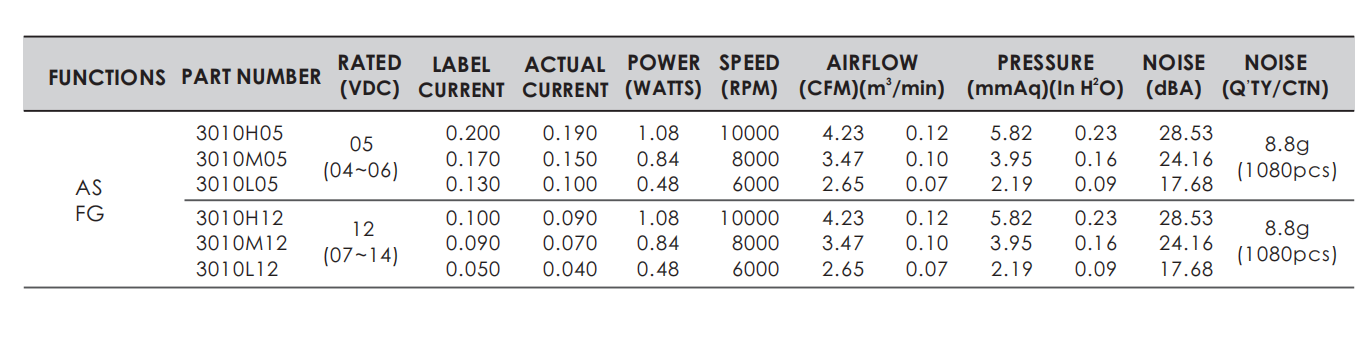

Specifications Parameter Of 3010 DC Axial Fan
Typical Solution
