Ø 225x101mm AC Fan
General Specifications Material --- Plastic Impeller Bearings --- Maintenance-Free Ball Bearings Motor Type --- AC Induction Capacitor Connection --- Lead wire Dielectric Strength --- 1800 VAC for 1 Sec. Insulation Resistance --- 100 MΩ min.@500VDC Operating Temperature --- -20 ℃ to +70 ℃ Type...
Send Inquiry
Add To Inquiry
Product Introduction

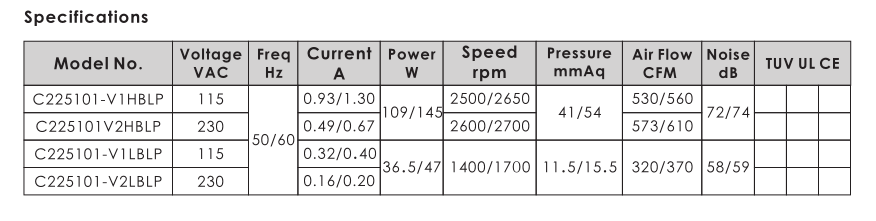

General Specifications
Material --- Plastic Impeller
Bearings --- Maintenance-Free Ball Bearings
Motor Type --- AC Induction Capacitor
Connection --- Lead wire
Dielectric Strength --- 1800 VAC for 1 Sec.
Insulation Resistance --- 100 MΩ min.@500VDC
Operating Temperature --- -20 ℃ to +70 ℃
Type of Protection --- Insulation Class F
Safety --- Thermally Protected (Auto Restart)
Plastic Impeller
Weight : 1985 g
Rohs Compliance

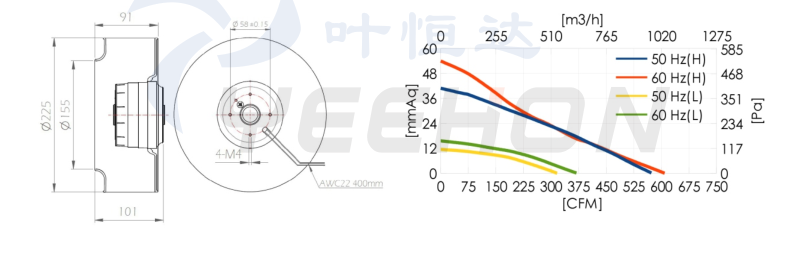

Dimensions (Unit : mm) Air Flow and Static Pressure
Ø 225x101mm ﹝High Speed﹞﹝Low?Speed﹞
