RS-500 DC Micromotor18v
RS-545 motor
RS-500 DC micromotor18v
Feature
1. It is made up of armature , Stator and Carbon brush cap;
2. Current: 60mA
3. Torque:0.3-10kgf.cm
4. Speed: 5-300rpm
5. Typical applications:office equipment,Auto shutter, household appliance, automatic actuator.
6. Parameter of RS-500 DC micro motor 18v
Model | VOLTAGE | NOLOAD | AT MAX EFFICIENCY | STALL | |||||||||
OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORPUE | OUT PUT | EFF | TORPUE | CURRENT | |||
(RPE) | (A) | (RPM) | (A) | (g.cm) | (mN.m) | W | % | g.cm | mN.m | A | |||
RS-540-5536 | 9-15 | 12.0(V) | 18400 | 1.3 | 15900 | 7.7 | 483 | 47.4 | 78.9 | 77.3 | 3600 | 353 | 49 |
RS-540-6928 | 9-15 | 12.0(V) | 26000 | 1.8 | 21000 | 11.6 | 441 | 43.2 | 95.20 | 68.5 | 3300 | 324 | 75 |
RS-545-23120 | 18-30 | 24.0(V) | 5700 | 0.12 | 4750 | 0.58 | 165 | 16.2 | 8 | 69.5 | 1000 | 98 | 2.9 |
RS-545-19140 | 9.6-14.4 | 12.0(V) | 2800 | 0.1 | 2190 | 0.36 | 130 | 12.7 | 2.9 | 67.7 | 600 | 58.8 | 1.3 |
Parameter of RS-500 DC micro motor 18v
Unit of RS-500 DC micro motor 18v

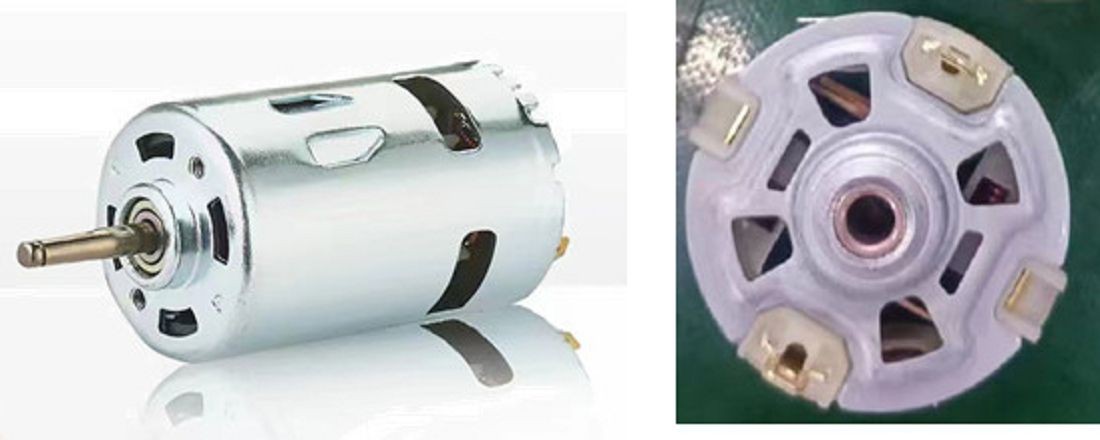

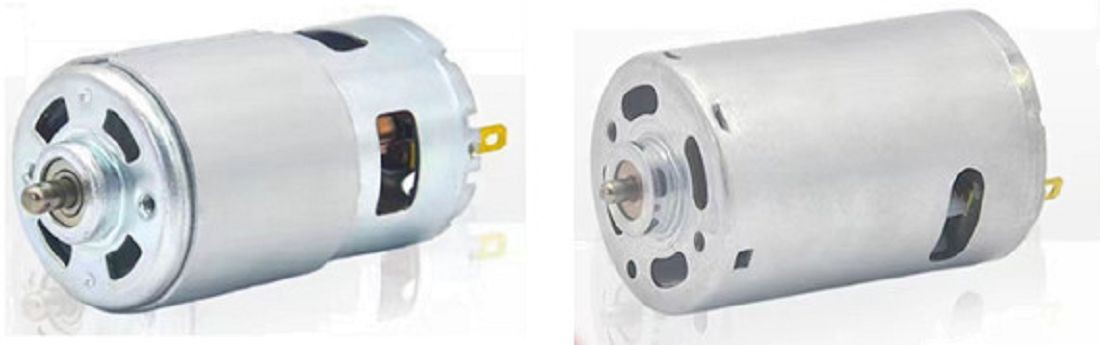

The photo of RS-500 DC micro motor 14.4v
A&Q
Q1.The cost of the sample and the production time of the sample.
A1.You can contact us to discuss the detail about the price of sample.
Q2.Does the product have a corresponding patent?
A2:YES,our product through TUV, CE, RoHs, UL and other relevant authoritative certification, in the industry has a strong technical, quality advantages.
Q3.What kinds of products supplied by your factory?
A3:we provide DC cooling fan,DC blower fan,AC cooling fan and EC cooling fan.Also we provide the SPD as well.
Q4.Time of mass production of products?
A4:It's about 20-30 days
Q5: What can I do if we can not find the suitable fan model in the fan list?
A5: Please contact us for customized fans.
