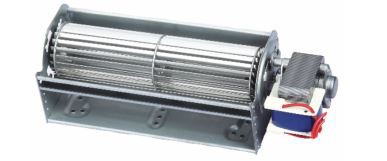

Low noise AC cross flow fan 48U Series

• ●Impeller Diameter: ∅48mm

• ●Bearing Type

Sleeve or Ball Bearings

• ●Material

Impeller : Aluminum Alloy

Frame : Cast Iron

• ●Moter

Impedance Protected

• ●Lead Wire:

UL type or Equivalent

• ●Srorage Temperature:

to -40 C°+80 C° (5%-90%RH)

• ●Operating Temperature:

to -10 C°+70 C° (5%-90%RH)

• ●Life Expectance

30000hours (Sleeve Bearing)

80000hours (Ball Bearing)

(1) The axial length is not limited, and the impeller length can be arbitrarily selected according to different use needs;

(2) The airflow flows through the impeller and is affected by the twice force of the blade, so the airflow can reach a long distance;

(3) No turbulence, and the air outlet is uniform;

(4) Because the air flow is forced to turn in the impeller, the head loss is large and the efficiency is low;
