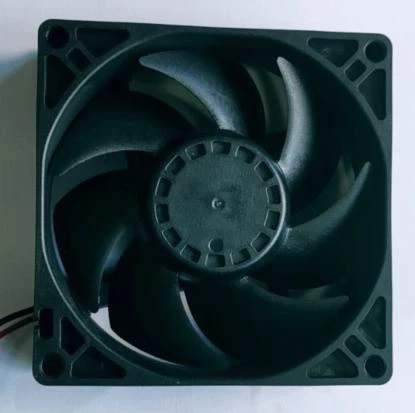

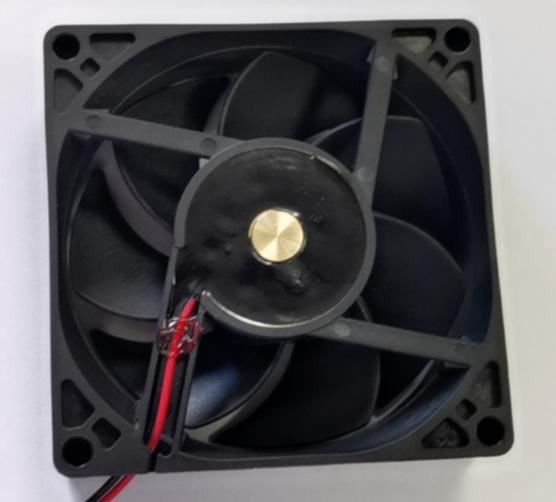

3.6 Inch Laptop Cooling DC Axial Fans Waterproof Protection
Feature of 3.6 Inch 8025 Laptop Cooling DC Axial Fans Waterproof Protection IP 68
Material ---------- Frame:Plastics (Flammability:UL94V-0)
Impeller:Plastics (Flammability:UL94V-0)
Lead Wire -------- + Red - Black (Sensor) Yellow (Control) Brown
Life time -----------25000 Hours Sleeve bearing
50000 Hours Ball bearing
Storage Temperature--- -30℃ ~ +70℃（Non-comdensing）
Bearing Type----- Ball Bearings Sleeve
Speed Range----- ±10%
Dimension Drawing of 3.6 Inch 8025 Laptop Cooling DC Axial Fans Waterproof Protection IP 68
Air Flow-Static Pressure Characteristics of 3.6 Inch 8025 Laptop Cooling DC Axial Fans Waterproof Protection IP 68
Specifications Parameter
| Model No. | Rated Voltage | Operating Voltage | Rated Current | Rated Input | Speed | Maximum Air Flow | Max.Static Pressure | Noise | ||
| VDC | VDC | AMP | Watt | R.P.M | M3/min | CFM | MmH2O | IN H2O | dB-A | |
| YH8025L12D | 12 | 7.5-13.2 | 0.06 | 0.72 | 1500 | 0.42 | 14.8 | 7.2 | 0.02 | 17 |
| YH8025M12D | 0.08 | 0.96 | 2100 | 0.58 | 20.4 | 14.3 | 0.05 | 19 | ||
| YH8025H12D | 0.12 | 1.44 | 2800 | 0.78 | 27.5 | 25.4 | 0.1 | 23 | ||
| YH8025X12D | 0.18 | 2.16 | 3500 | 1.03 | 36.1 | 37.34 | 0.15 | 28 | ||
| YH8025Y12D | 0.22 | 2.64 | 5200 | 1.46 | 51.5 | 87.7 | 0.35 | 38 | ||
| YH8025Z12D | 0.48 | 5.76 | 6800 | 1.91 | 67.4 | 150 | 0.6 | 45 | ||
| YH8025Z12D | 0.6 | 7.2 | 7400 | 2.07 | 73 | 177.6 | 0.7 | 48 | ||
| YH8025L24D | 24 | 14.5-27.5 | 0.02 | 0.48 | 1500 | 0.42 | 14.8 | 7.2 | 0.02 | 17 |
| YH8025M24D | 0.04 | 0.96 | 2100 | 0.58 | 20.4 | 14.3 | 0.05 | 19 | ||
| YH8025H24D | 0.6 | 1.44 | 2800 | 0.78 | 27.5 | 25.4 | 0.1 | 23 | ||
| YH8025X24D | 0.09 | 2.16 | 3500 | 1.03 | 36.1 | 37.34 | 0.15 | 28 | ||
| YH8025Y24D | 0.1 | 2.4 | 5200 | 1.46 | 51.5 | 87.7 | 0.35 | 38 | ||
| YH8025Z24D | 0.21 | 5.046 | 6800 | 1.91 | 67.4 | 150 | 0.6 | 45 | ||
| YH8025Z24D | 0.28 | 6.72 | 7400 | 2.07 | 73 | 177.6 | 0.7 | 48 | ||
| YH8025Y48D | 48 | 48 29.0-55.0 | 0.005 | 2.4 | 5200 | 1.46 | 51.5 | 87.7 | 0.35 | 38 |
| YH8025Z48D | 0.11 | 5.28 | 6800 | 1.91 | 67.4 | 150 | 0.6 | 45 | ||
| YH8025Z48D | 0.14 | 6.72 | 7400 | 2.07 | 73 | 177.6 | 0.7 | 48 | ||
Typical Solution
Ventilation Equipment & System
Heating Equipment & System
Air Conditioner
Refrigeration equipment
MDBS ( Mobile Data Base Station )
Telecom power supply station
industrial production equipment
medical equipment
home appliances
and etc.
Our Product
Axial fan ( size mm ) :
DC Fan :20 X 20 X 10mm, 25 X 25 X 7mm, 25 X 25 X 10mm, 30 X 30 X 7mm, 30 X 30 X 10mm, 30 X 30 X 15mm, 35 X 50 X 50 X 10mm, 50 X 50 X 10mm, 40 X 40 X 10mm, 40 X 40 X 10mm, 40 X 40 X 60 X 60 X 20mm, 60 X 60 X 10mm, 60 X 60 X 15mm, 60 X 60 X 20mm, 60 X 60 X 25mm, 60 X 60 X 38mm, 70 X 70 X 15mm, 70 X 70 X 25mm, 80 X 80 X 10mm, 80 X 80 X 15mm, 80 X 80 X 20mm, 80 X 80 X 25mm, 80 X 80 X 32mm, 80 X 80 X32 ( Z ), 170 X 170 X 40, 170 X 150 X 51, 200 X 200 X 60mm, 120 X 120 X 38mm, 254 X 254 X 89mm and other fans
EC fan ( AC TO DC ) : ( 6030 = 60 X 60 X 30mm )
8025, 8038, 9225, 9238, 12025, 12038, 172 X 150 X 51 and other fans;
AC fan : 6030, 8025, 8038, 9225, 9238, 12025, 12038, 12738, 13538, 14045, 15051, 16062, 17055, 17238, 17251, 20060, 22581, 25489, 28080, 172 X 150 X 51 and other fans .
Blower fan ( DC ) : 3007, 4010, 6018, 5115, 7530, 9733, 12025, 12032
Cross flow fan ( DC & AC ) : 30 series, 40 series, 50 series, 60 series, 65series
Mciro fan : 1504, 1707, 1804, 2008, 2508, 3004, 3007, 3008
